Product Details
Place of Origin: China
Brand Name: FAMOUS
Certification: CE,ISO9001,SASO,SGS
Model Number: None
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD15-30 per square meter
Packaging Details: Wooden Package Or Standard seaworthy packing
Delivery Time: 15 -30days
Payment Terms: L/C, T/T
Supply Ability: 100000 sqm. per month
Door Seal Material: |
France Polyester Fabric (2level Transversely Stable Polyester Filament),PVC Coated Fabric,etc |
Core Material: |
PVC Plastic Fabric |
Type: |
Lifting Door,rolling Door,shutter Door,etc |
Surface Color: |
Blue,Yellow,Red,Grey,White,Full-clear,etc |
Application: |
Logistic System, Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc |
Certification: |
CE/ISO:2009 |
Size: |
Customized As Order |
Power Supply: |
1-phase-220v, 3phase-380v |
Wind Resistance: |
25m/s (Wind Scale 10) |
Door Seal: |
Inflatable Folding Rubber Seals ,dock Seal Shelter,etc |
Door Seal Material: |
France Polyester Fabric (2level Transversely Stable Polyester Filament),PVC Coated Fabric,etc |
Core Material: |
PVC Plastic Fabric |
Type: |
Lifting Door,rolling Door,shutter Door,etc |
Surface Color: |
Blue,Yellow,Red,Grey,White,Full-clear,etc |
Application: |
Logistic System, Food Factory, Pharmaceutical Factory, Warehouses, Packaging Industry, Chemical Industry, Etc |
Certification: |
CE/ISO:2009 |
Size: |
Customized As Order |
Power Supply: |
1-phase-220v, 3phase-380v |
Wind Resistance: |
25m/s (Wind Scale 10) |
Door Seal: |
Inflatable Folding Rubber Seals ,dock Seal Shelter,etc |
Description:

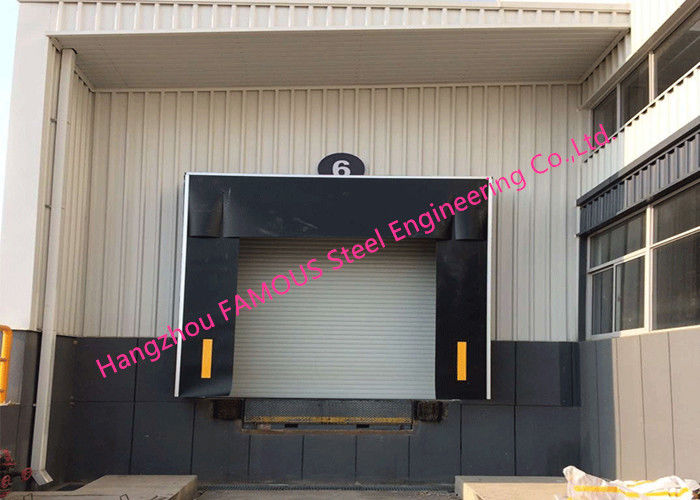

Mechanical Retractable Inflatable Industrial Door Seals mainly adapts accurately to various dimensions of lorry. It offers excellent sealing properties and for the most part prevents outdoor temperature reaching warehouse. Door seal is usually used for through-the-wall-style platform to communicate with the internal environment of the compartment with the plant, logistics and environmental protection in the process of loading and unloading.All platform door seals can be customized to meet the special requirements of your platform and truck transport to ensure the most efficient seal.Mechanical Dock Shelter is the standard shelter which is suitable for all vehicle sizes and has a flexible design. The curtain shelter is made in double-layered polyester with high longitudinal and transverse tensile strength.
Specifications:
| Product Name | Mechanical Retractable Inflatable Industrial Door Seals |
| Dimension(Width*Height) | 3400*3400mm, 3400*3600mm,3400*3800mm |
| General description |
adopt insert seal working solution. Meet various type truck loading condition. Keep warehouse clean&anti-wind. |
| Color | Ral Color according to customer’s demands |
| Material | France Polyester fabric (2level Transversely stable polyester filament),PVC coated fabric,etc |
| Outer/Inner support frame material | Aluminum profile, steel tube,etc |
| General size |
*maximum width:2.0M *strength at break:150 N/mm *thickness:2.5mm *1%Extended force:8N/mm *weight:2.7kg/m2 |
| Temperature scope | -20/+80 ℃ |
| Fireproof class | Euro class 2 |
| Delivery time | 20 days |
| Package | Pallet or in bulk |
| Function | Rain proof, dust proof, wind proof,etc. |
Main Features:
1.The curtain material adopted high quality fabric;
2.suitable for most truck dimensions.
3. virtually hermetic sealing.
4. ensures constant indoor temperature.
5.draught, moisture, dirt and insects virtually eliminated from the warehouse.
6. can be used with existing and new buildings made of high-grade materials.
7.The base has the air holes which guarantee the bag owned constant pressure after using.
8.The basic frame of shelter adopts high quality profile and all parts are owned Corrosion protection character.The exterior surface was covered with Wear resistant material.
Package & Delivery:
Applications:
1. Suitable for door shelter applications which have strict requirements for insulation,the same vehincle type and more wall load-bearing capability.
2. We offer wide variety of Dock Seals design to suit differ-ent sizes of vehicle,such as:not-adjustable,adjustable,cur-tain hanging type,inflatable type etc.
