Product Details
Place of Origin: China
Brand Name: FASEC
Certification: ISO 9001; ISO 14001; CE;
Model Number: Flat web
Payment & Shipping Terms
Minimum Order Quantity: 25 Tons
Price: USD500-1000 /Ton
Packaging Details: In bundles, all seaworthy packaging and transportation
Delivery Time: 30 to 45 days
Payment Terms: Western Union, , MoneyGram, L/C, T/T
Supply Ability: 100000 tons per week
Material: |
Steel |
Grade: |
SY295, SY390, Q345P,S355GP Etc |
Type: |
Steel Sheet Piles |
Product Name: |
Flat Web Sheet Piles |
Standard: |
ASTM,AISI, EN,JIS |
Application: |
Cofferdams, Seawalls, Revetment, Quaywall |
Tolerance: |
+/-3% |
Turnaround Time: |
30 Working Days |
MOQ: |
25 Tons |
Payment Terms: |
T/T |
Material: |
Steel |
Grade: |
SY295, SY390, Q345P,S355GP Etc |
Type: |
Steel Sheet Piles |
Product Name: |
Flat Web Sheet Piles |
Standard: |
ASTM,AISI, EN,JIS |
Application: |
Cofferdams, Seawalls, Revetment, Quaywall |
Tolerance: |
+/-3% |
Turnaround Time: |
30 Working Days |
MOQ: |
25 Tons |
Payment Terms: |
T/T |

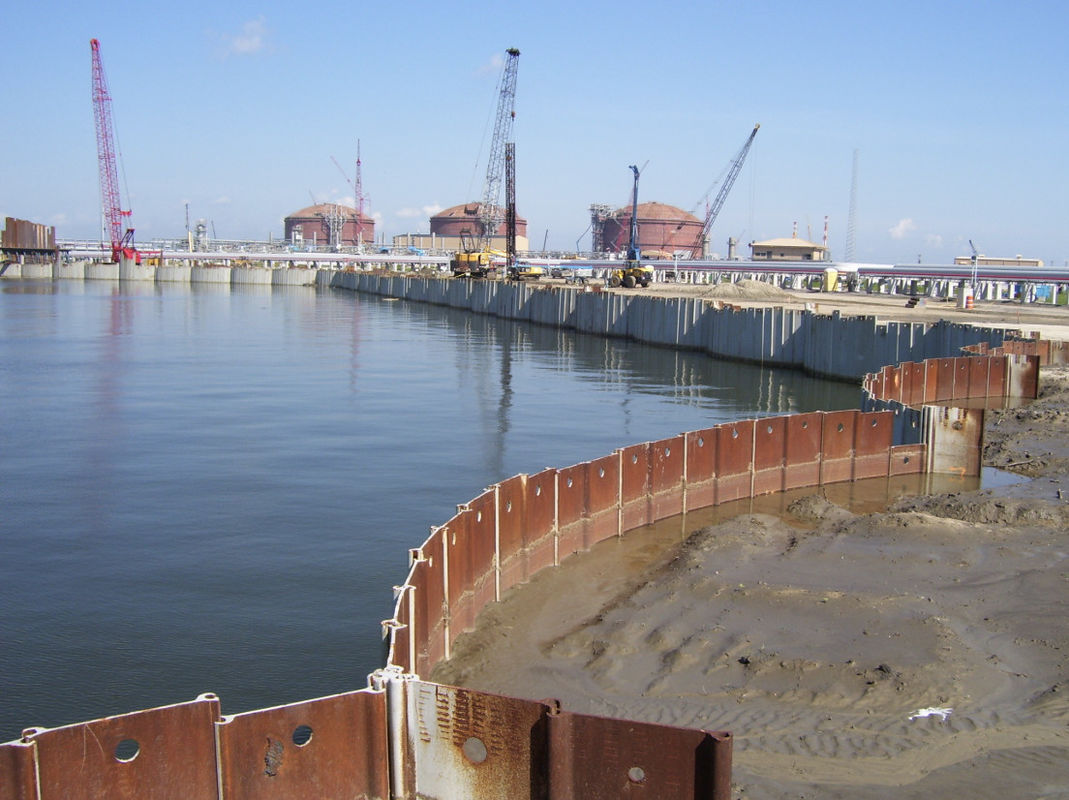

Best Price Flat Sheet Piles Wholesale Flat Web Sheet Piles for Cellular Cofferdams
Flat Sheet Piling sections consist of a web with thumb and finger interlocks at each end. The interlocks are designed to resist high tensile loads, but the section offer very little beam strength. They are typically used for circular cell design. When properly interlocked, this three-point contact interlock system can withstand severe setting and driving conditions and still function as intended.
Features and advantages
* Extremely high tensile at their interlocking sections, up to 5.88 MN per linear metre,
* Best suited for use in cellular-type structures, such as quay walls,artificial island seawalls, cofferdams and other similar project,
* Can be supplied with deviation angle (interlock swing) up to 12.5°, and in lengths up to 38.0 metres.
Sectional Properties
| Flat Web Sheet Pile | Width | Thickness | Mass per Pile | Mass Wall | Modulus of section | Moment of Inertia |
| mm | mm | kg/m | kg/m2 | cm3/m | cm4/m | |
| 500 | 12 .0 | 74.3 | 149 | 51 | 196 | |
| 500 | 12.5 | 76.3 | 153 | 51 | 201 | |
| 500 | 12 .7 | 77.1 | 154 | 52 | 204 | |
| 500 | 13.0 | 79.0 | 158 | 54 | 213 |
Applications:
*Bridge abutments
*Graving docks
*Bridge pier protection
*Deep draft bulkheads and docks
*Cofferdams
*Mooring dolphins
*Levee construction
*Erosion control
Detailed Product Images
Applications
Certificates
About Us - Hangzhou Famous Steel Engineering Co.,Ltd
Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.
If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions for your project.
Email: Eva@hfsteelstructure.com
Phone: +86-571-87688170; +86-13989831561
