Vertical Interlocking System Steel Sheet Piles Hot Rolled Cold Formed

China Factory Top Quality and Inexpensive All Types of Steel Sheet Piles

Steel sheet piles are long steel structural sections with a vertical interlocking system that create a continuous wall. The walls are often used to retain either soil or water. The ability of a sheet pile section to perform is dependent upon its geometry and the soils it is driven into. The pile transfers pressure from the high side of the wall to the soil in front of the wall. As an effective earth retention and excavation support construction material, steel sheet piles applications include port and harbour structures, river revetments, retaining walls, cutoff walls, slope protection and cofferdams.

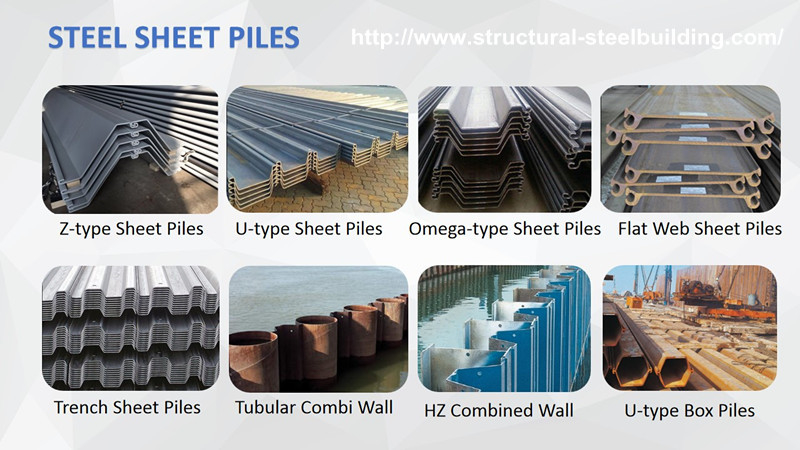

Sheet piles are available as hot-rolled and cold-formed sections. The following list shows some example:

Cold Formed vs Hot Rolled Sheet Piles

Difference between Hot Rolled and Cold Formed Sheet Piles

The main difference lies in the process of which the piles are being produced. Hot Rolled Sheet Piles are produced directly in hot form from a beam blank into its final shape. Cold Formed Sheet Piles on the other hand uses Hot Rolled Coils to roll them under pressure into its final shape in cold (room temperature) forming state. As Hot Rolled Sheet Piles are formed under heat, complex interlock shapes are therefore possible however for Cold Formed Sheet Piles, it will just be a simple hook and grip type interlock. Due to the investment required for Hot Rolled Sheet Piles and its associated machinery, there are few mills in the world who can produce such sections. EN Standard Piles are mostly produced in Europe while JIS standard Hot Rolled Sheet Piles are produced in Asia.

Feedstock of Cold Formed Sheet Piles are Hot Rolled Coils and they are largely available worldwide. Due to this availability, Cold Formed Sheet Piles are normally more readily available in lead time and are produced closer to your project location. Furthermore, the ability to buy different types of width and thickness of coils, gives Cold Formed Sheet Piles the added ability to customize new sections and shape which could be optimized to save on weight.

Cold formed sheet piles are equivalent to the hot rolled when they are equivalent in sections. All sheet piles are designed based on their sectional properties such as section modulus, moment of inertia and steel grade. Hence, for the same bending moment capacity of each pile, whether Hot Rolled or Cold Formed, they should perform with the exact same characteristics.

Detailed Product Images

Applications

Certificates

About Us - Hangzhou Famous Steel Engineering Co.,Ltd

Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of hot-rolled and cold-rolled steel products for large buildings and foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame. In addition to the supply of products, we also provide engineering support in response to the request of our customer. If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions.
