Engineered Unidirectional Aeronautical Hangar Door Typical Design With Wicket

Product Details

Place of Origin: China

Brand Name: FAMOUS

Certification: CE,ISO9001,SASO,SGS

Model Number: None

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD500-1000 per Set

Packaging Details: Standard seaworthy packing

Delivery Time: 15 days

Payment Terms: L/C, T/T

Supply Ability: 1000 sets per month

Get Best Price
Highlight:

Unidirectional Aeronautical Hangar Door

,

Wicket Unidirectional Aeronautical Hangar Door

,

Aircraft Hangar Industrial Garage Doors

Door Material:
Steel
Core Material:
PU
Type:
Sliding Door
Color:
Grey
Surface Sheet:
Galvanized
Application:
Aircraft Hangar
Door Material:
Steel
Core Material:
PU
Type:
Sliding Door
Color:
Grey
Surface Sheet:
Galvanized
Application:
Aircraft Hangar

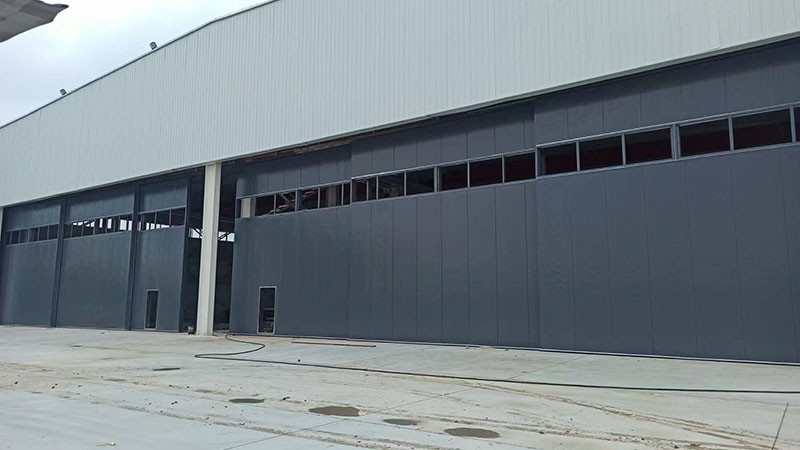

Engineered Unidirectional Aeronautical Hangar Door Typical Design With Wicket

Typical Design China Manufacturer Engineered Unidirectional Aeronautical Hangar Door with Wicket





Specification

1 200mm tube door leaf frame
2 top guide wheel
3 top guide wheel pad
4 top guide wheel screw
5 bottom wheel
6 bottom wheel bracket
7 12A chain
8 driving gear
9 Motor shaft
10 Motor fixing bracket
11 Bottom cover
12 ground rail
13 Splint
14 Splint screw
15 50 angle iron
16 Angle iron embedded screw
17 Drainage frame
18 Drain grate
19 Door stop
20 Top rail
21 square tube hanging parts
22 leaf panel
23 U-shaped channel steel
24 trolley wire
25 Trolley wire bracket
26 Collector wire
27 Collector bracket
28 Side seal
29 Safty Protection System
30 ABB Motors
31 control box



Design wind load according to typhoon level



Typhoon:
Level 12 is 32.4-36.9 m/s;
Level 13 is 37.0-41.4 m/s;
Level 14 is 41.5-46.1 m/s,
Level 15 is 46.2-50.9 m/s,
Level 16 is 51.0-56.0 m/s,
Level 17 is 56.1-61.2 m/s.



For any door member ,the deflection due to design wind load not exceed the member's length divided by 150.

Design Doors as a system to withstand the upward and downward deflections of the door header structure .
