Product Details
Place of Origin: China
Brand Name: FASEC
Certification: ISO, CE etc
Model Number: Type 1
Payment & Shipping Terms
Minimum Order Quantity: 1000sqm
Price: USD10-20/sqm
Packaging Details: seaworthy packings
Delivery Time: 1-4 weeks per production plan
Payment Terms: D/A, L/C, D/P, T/T, Western Union
Supply Ability: 50000sqm per month
Material: |
Galvanized Steel GB US EU AS Std. |
Type: |
Corrugated Or Trapizoidal |
Color: |
White |
Zinc: |
279g/m2 |
Surface: |
Spangle |
Width: |
688mm |
Thickness: |
1.2mm |
Material: |
Galvanized Steel GB US EU AS Std. |
Type: |
Corrugated Or Trapizoidal |
Color: |
White |
Zinc: |
279g/m2 |
Surface: |
Spangle |
Width: |
688mm |
Thickness: |
1.2mm |
Steel floor deck is widely used in power plants, power equipment companies, automobile exhibition halls, steel structure workshops, cement warehouses, steel structure offices, airport terminals, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, and the Olympics. Steel buildings such as stadiums and stadiums.
Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time, and can use multiple floors to lay the profiled steel plate and layer the concrete flow of the concrete slab.

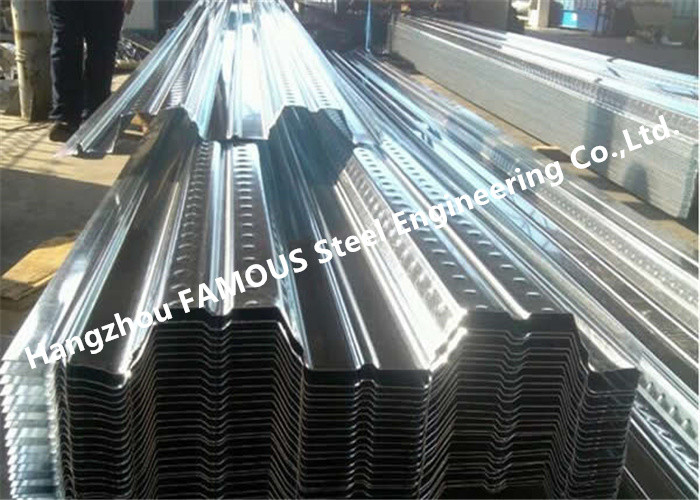

| Product Name | Galvanized Corrugated Steel Deck System Concrete Floor Deck Construction |
| Base material | Hot dipped galvanized high strength steel sheet |
| Thickness | 0.6-1.5mm |
| Effective Width | 600-1100mm customized |
| Height |
30-140mm per design and calculation needs |
| Quality | SGCC, DX51, ASTM 653, A792, G450, G500, G550 (MPA) |
| Based Zinc-coating | Up to 275g/m2 |
Following are some of typical profiles:
To complete our floor decking products we advise a complete floor slab construction by adding the supply and laying of reinforced concrete. This single point solution allows a fully integrated metal deck and concrete slab with associated trade interface and program advantages.
Composite slab which is comprised of lightly reinforced concrete cast on profiled steel decking are an option whether the beams are downstand or integrated within the slab depth for a shallow floor form of construction. The slabs are normally reinforced using an upper layer of mesh and, sometimes additional bars in the troughs (usually for longer periods of fire resistance and heavy loads). Fiber reinforcement may also be used. Spans of up to 4.5 m can be achieved using trapezoidal decking. Some so-called deep decking profiles also exist (over 200 mm deep), that can span 6 m or so without propping during construction.
Following are some typical detail:
Warmly welcome various clients from International market to enquiry and visit us!
