Product Details
Place of Origin: Hangzhou,China
Brand Name: HongFeng
Certification: ISO,SGS,CE,COC,etc.
Model Number: 950mm & 1150mm
Payment & Shipping Terms
Minimum Order Quantity: 100 Square Meters
Price: 6-12USD Per Square Meter
Packaging Details: Standard seaworthy packing
Delivery Time: 7-15Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200,000 Square Meters per Month
Thickness: |
50mm, 100mm, 150mm |
Density: |
42kg |
Used For: |
Walk In Cold Room |
Effective Width: |
950mm |
Color: |
Gray White |
Core Material: |
Polyurethane |
Thickness: |
50mm, 100mm, 150mm |
Density: |
42kg |
Used For: |
Walk In Cold Room |
Effective Width: |
950mm |
Color: |
Gray White |
Core Material: |
Polyurethane |
Introduction

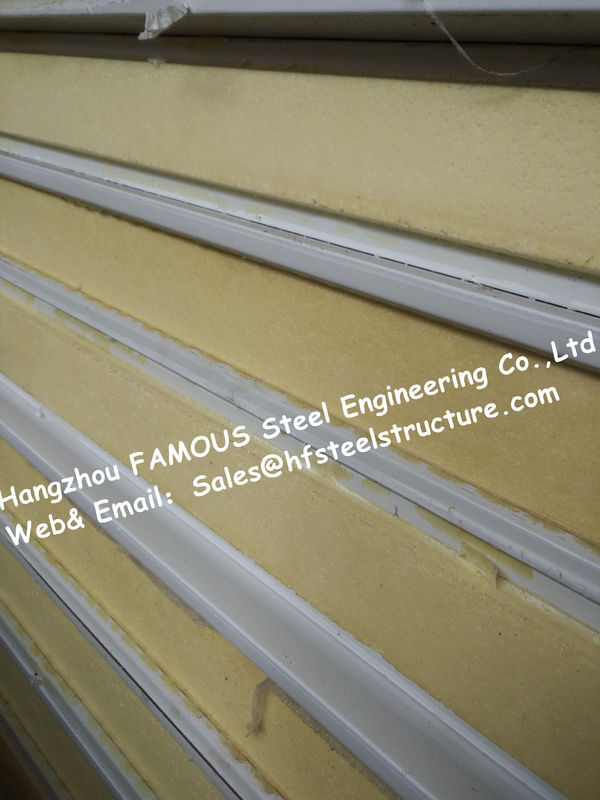

PU sandwich panels is a kind of board used for enclosing structures, which has good heat insulationand higher intensity.It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems.
PRODUCT
| Cold Room Polyurethane ( PU) Sandwich Panels | |
| Thickness | 50, 75, 100, 150 , 200 mm |
| Density | 38 - 40 – 43 – 46 kg / m3 |
| Width | 960mm |
| Joint | Camlock (tongue and groove) |
| Plate | External is color steel or stainless steel or Aluminium (Stucco embossed or pre-painted) |
| Usage | Wall & Floor & Ceiling |
| Door | Sliding door and Swing door |
Size: All the panels produced by us are discontinuous type and locked to each other. These panels can be produced 50 cm, 100mm and 150mm, widths are 980mm in standard or customized, Installation details and accessories of the prefabricated panels are predesigned, and outer surfaces can be produced with painted and galvanized metal sheets, or stainless steel metal sheets.
Advantages
1. Broad Availability ,wide range of material for your choice
2. Outstanding Formability with beautiful appearance with rich color
3. Superior Durability
4. Excellent Cost Effectiveness
Walk in freezer Size and temperature can be made according to the customers' requirements
0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezer Storage
-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze
-35 °C ~ -50 °C: Blast Freezer, Quick-Freezer
DETAILS OF THE PANEL JOINT
Cold room door panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints.
* Cam-lock design fastener to install with the cold room tightly and strongly
* Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool roomor moisture inside the PU insulated panel for the best refrigeration and frozen storage result
DOORS
1). Swing door and Sliding door available.
2). Swing door: Manual, Automatic available etc.
3). Door panel made with special pressing technology PU material.
4). Door frame: color steel or stainless steel.
APPLACATIONS
Sandwich panels are used in facades, partition walls and ceilings. The most typical applications include industrial, office and commercial buildings, sports halls, warehouses and power plants. The panels are also suitable for food industry construction and demanding clean room applications.
ABOUT THE GROUP
Hangzhou FAMOUS Steel Engineering Co.,Ltd. focus on various structural steel construction and steel-related products supplying. Under support of structural giant Hongfeng Industrial Group, FAMOUS received a lot of foreign projects from project engineering, fabrication, logistic and installation guidance etc. and become more professional in foreign project operation, specially in US-EU standard engineering and project management aspects.
